DeVilbiss Homecare Suction Unit 7305D-D

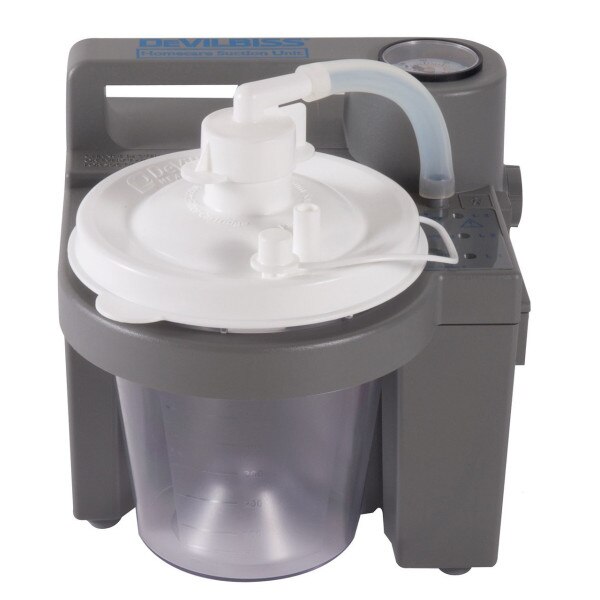

DeVilbiss Vacu-Aide 7305 Series Homecare Suction Unit
The DeVilbiss Vacu-Aide 7305 Series Homecare Suction Unit, without a battery, is a compact and reliable medical suction device designed for portability and ease of use. Its small size, lightweight nature, and DC operation make it an excellent choice for home use and transportation, especially with the optional DC cord. This unit efficiently meets suction and capacity requirements while maintaining a compact and portable design.
Special Features
- Devilbiss portable suction machine has vacuum adjustments that allow for 80 to 550 mmHg and a free flow of 27 liters per minute.
- Adjustable flow regulator - Easy-to-turn knob conveniently placed directly below the gauge, for easy use and control.
- This portable suction machine has a safety lock feature that allows the knob to be twisted off.

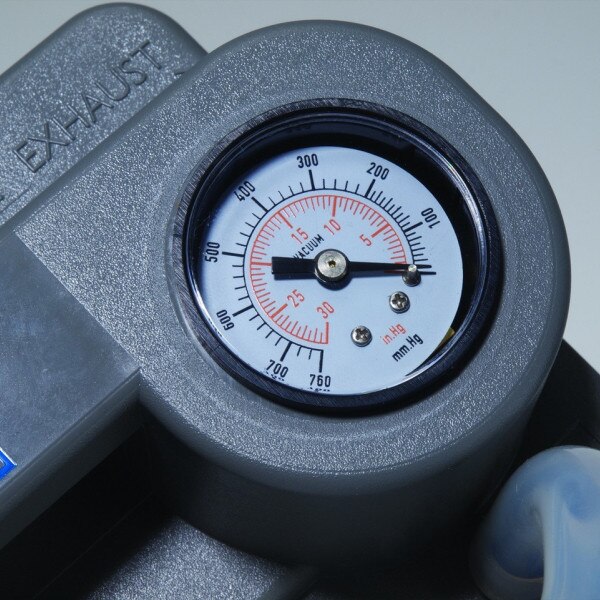

- Easy-to-read gauge, especially important when precise measurements of vacuum are needed for the pediatric patient.
- Meets the RTCA/DO160D Aircraft Standard as well as the ISO-10079 1:1999.
- Suction Standard Devilbiss Suction Unit is equipped with a switch-mode power supply allowing operation on any AC voltage (100-240 VAC, 50/60 Hz).
- Automatic float shut-off to prevent overflow into the unit.
- Uses a rechargeable battery with 60 minutes run time, automatically recharges when connected to the power supply.
- This homecare suction unit can be operated while inside the carrying case.
- Battery for use up to one hour that provides the patient with added security when needed most
When to use DeVilbiss Vacu-Aide Homecare Suction Unit?
- More frequent or congested-sounding cough.
- Coarse rhonchi and expiratory wheezing audible to the patient and/or caregiver with or without auscultation.
- Visible secretions Increased peak pressures during volume-cycled mechanical ventilation.
- Decreased tidal volumes during pressure-cycled ventilation Indication by the patient that suctioning is necessary.
- Suspected aspiration of gastric or upper airway secretions
- Otherwise unexplained increase in shortness of breath, respiratory rate, or heart rate
- Decreases in vital capacity and/or oxygen saturation (as indicated by pulse oximetry), thought to be related to mucus plugging
Included
- Suction Unit
- 800cc Disposable Container
- Tubing Elbow
- AC and DC power cords
- Size: 9" x 7" x 8" (22.9cm x 17.8cm x 20.3cm)
- 7305D Series Weight: 3.8lb (1.7kg)
- Electrical Requirements: 100 to 240 V AC 50/60 Hz .75 A max; 12 V DC, 33 W max
- 7305D Series: Internal Rechargeable Battery Not Factory Equipped (provider-installed option)
- Vacuum Range: 80 to 550 mmHg Air Flow @ pump inlet 27 LPM (free flow) typical (may be less when running from internal battery)

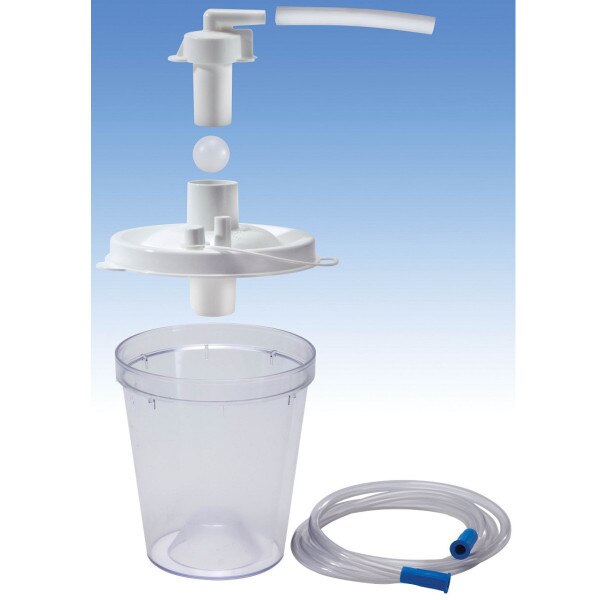

- Collection Bottle: Capacity 800 ml (cc) Disposable
How to operate the Suction Unit?
- Before connecting the unit to the AC adapter or 12V DC cord, make sure that the power switch located on the side of the unit is in the Off position.
- Select power source desired
- AC operation Plug the small connector of the AC adapter into the DC power input located on the side of the unit Plug the AC end into a grounded wall-outlet power source.
- 12V DC operation Plug the small connector of the DC power cord into the DC power input on the side of the unit Plug the large connector into the 12V DC power receptacle of the automobile.
How to Clean DeVilbiss Vacu-Aide Suction Unit?
- Shut off the unit using power switch and allow vacuum to drop.
- Disconnect power source from the DC input receptacle on the unit.
- With the collection bottle still in the holder, remove the lid.
- The bottle can now be taken out of the holder to be emptied.
- Collection bottles and lids should be thoroughly cleaned after each use by one of the following methods:
All Bottles: Wash in a hot water/dishwashing detergent solution and rinse with clean, hot tap water Then wash in one part vinegar to three parts hot water solution Rinse with hot tap water and air dry.
