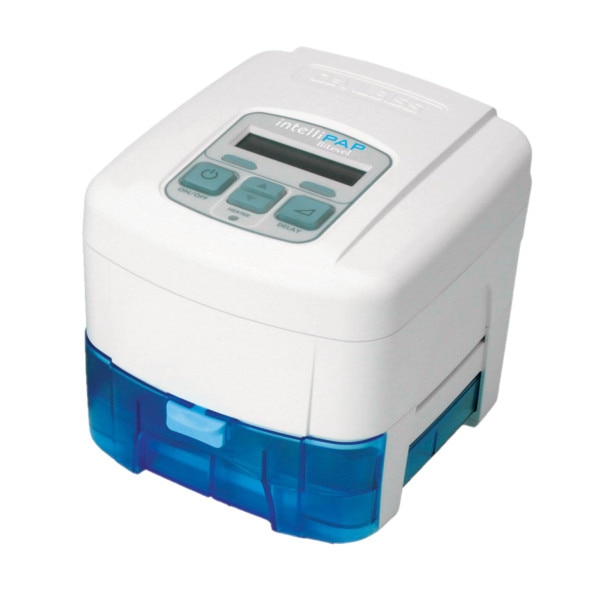

DeVilbiss IntelliPAP Auto BiLevel with Heated Humidifier

Copy of RX Required if Applicable to U.S Residents

Product Description

Introducing the latest addition to the IntelliPAP line - the IntelliPAP Auto Bilevel system incorporates the comfort of Auto Adjust(R) and Bilevel Technology to deliver comfortable therapy, particularly at higher prescription pressures. The IntelliPAP AutoBilevel automatically adjusts to the user's pressure requirements on both inhalation and exhalation, using the unique DeVilbiss Auto Adjust algorithm featuring event set measurement.

Explanation of Flow Rounding:

Flow Rounding provides independent adjustment of IPAP and EPAP transitions, featured on the DeVilbiss Bilevel machines for over a decade.
The result, the ability to alleviate discomfort associated with breathing against prescribed CPAP pressure as well as the capability to change the slope of the pressure waveform during the transition from prescription pressure to the SmartFlex setting and vice-versa. Flow rounding enables a smooth transition between pressure and a decrease in the likelihood of waking the user.

Flow Rounding Benefits:

  • Enhances comfort by allowing for adjustment of transitions in and out of IPAP and EPAP
  • This provides for a more natural and comfortable waveform
  • IPAP and EPAP transitions are individually adjustable
  • Settings range from 0-5

The IntelliPAP BiLevel has the capability of smoothing the expiratory to inspiratory breath-by-breath resistance to maximize therapy effectiveness and comfort. The IPAP and EPAP breathing patterns adjust based on a setting of zero for no performance and up to 5 for maximum performance. An advanced ramp pressure feature, Soft Start slowly increases pressure up to prescribed IPAP level over a period of 10 seconds, improving overall acclimation to Bilevel therapy.

SmartCode Technology

SmartCode is a simple and easy way to review your sleep therapy compliance without the need to purchase software programs. Beginning the day after your first sleep session, the IntelliPAP Bilevel machine begins to display SmartCode messages on your LCD screen. Each message is a unique encrypted code containing the results of your sleep therapy. The IntelliPAP quickly confirms compliance using the Adherence Score. Doctors use the Adherence percentage score to determine whether a user is in compliance with BiLevel. SmartCodes report Adherence based on the best consecutive thirty days of usage. Codes can be generated for the following calendar schedule:

  • 1 Day
  • 1 Week
  • 1 Month
  • 3 Months
  • Cumulative

Special Features

  • Smart Design
  • Easy and intuitive setup
  • Auto on/off** automatically starts the flow of air with patient breath
  • Eight-foot power cord provides greater positioning flexibility no bulky power brick
  • Reminders alert patient to replace or check parts
  • Includes attractive travel bag
  • Large, slip-resistant pads on the bottom of the unit to minimize movement on a nightstand
  • Clinical Strength
  • Event Detection
  • Altitude Compensation
  • Remote Control Capabilities
  • Clean Filter Reminder
  • Pressure Ramp
  • Flow-Rounding technology
  • Soft Start
  • SmartCode Compliance Tracking
  • Auto On/Off Feature
  • Alerts
  • Back-lit LCD
  • Bilevel User Menu

Included in This Package

  • Travel Case

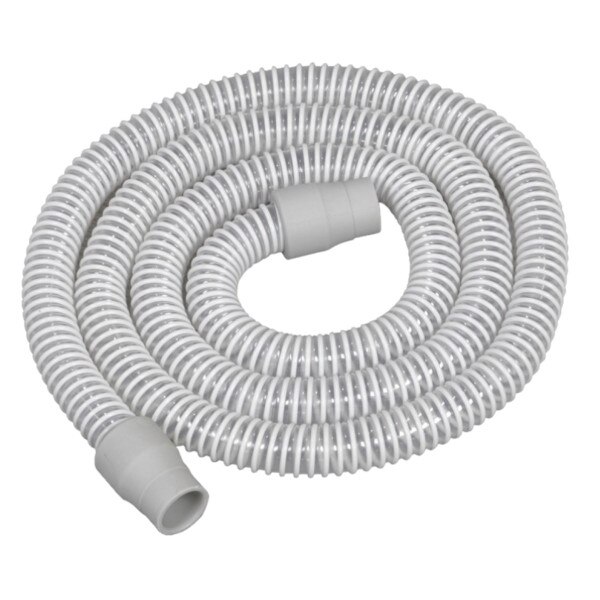

  • BiLevel/CPAP Hose

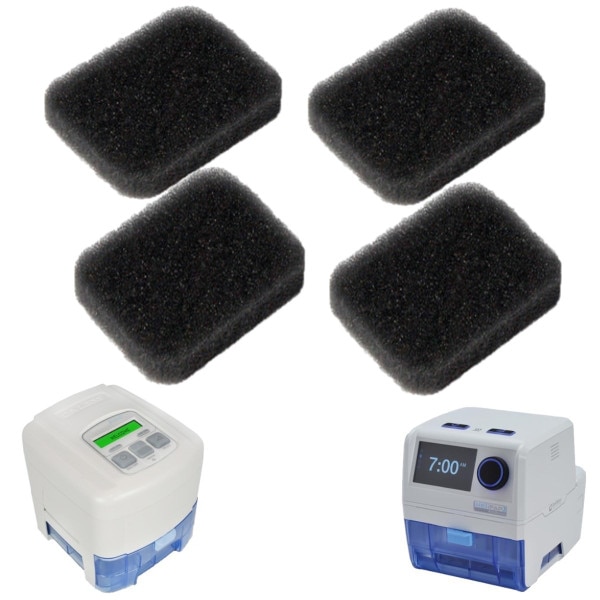

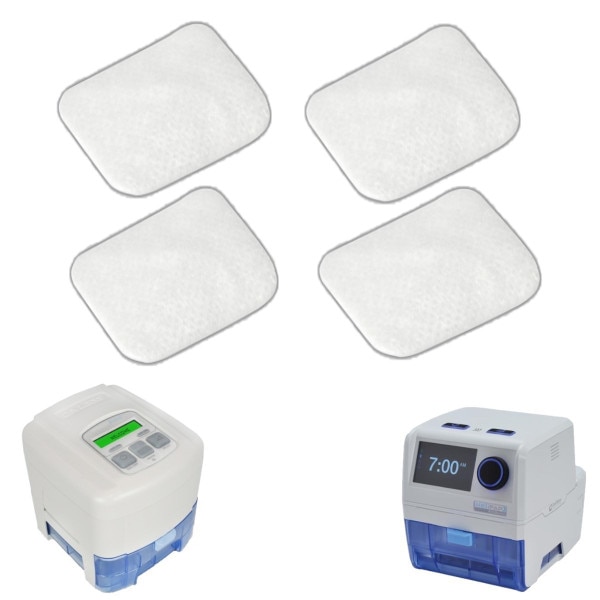

  • IntelliPAP Filters
  • AC power cord
  • Instruction Guide
  • Educational DVD

Optional Accessories

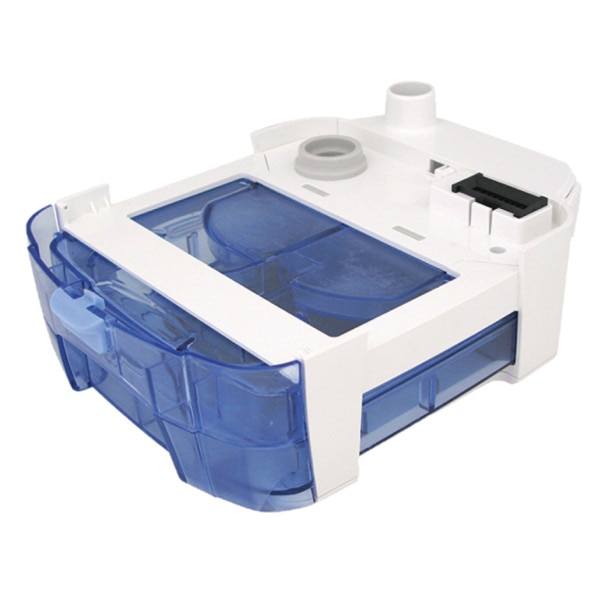

  • DeVilbiss IntelliPAP Heated Humidifier
  • SoClean CPAP Sanitizer

Recommended Replacement Schedule

  • Cushion: Every 1-3 Months (or as needed)
  • Headgear: Every 3-6 Months (or as needed)
  • Complete Mask: Every 9-12 Months (or as needed)
  • Tube Hose: Every 1-3 Months (or as needed)

AC Power:100-240 V AC, 12V DC
Actual Weight:         2.7lbs without Humidifier; 4.45lbs with Humidifier
Altitude Compensation:         Auto Adjust
Battery Power:         Use external power source (Deep Cycle Marine Battery) with DC Power Cable (Part number DV51D-619)
Breath Rate:Flow rounding technology
Compliance Meter:SmartCode Compliance Tracking
Condition:New
Country of Origin:USA
Data Storage Content:Stored internally and removed by SmartLink
DC Power:With Adapter
Dimensions:6.5" x 8.4" x 6.4"
Electrical Requirements:100 - 240 AC, 12volt DC
FAA Approved:Yes
Filters:Pollen
Humidifier:Heated: Included
Insurance Codes:E0601,E0562,A7037,A7038,A7039
International Shipping:Available
Mode of Operation:BiLevel
Pressure Range:3 cm/H2O to 25 cm/H2O
Ramp Time:0-45 minutes
RX Required?:         Yes, When Applicable to U.S. Residents
Sound Level:Level tested per ISO I7510 @ 26dBA (Pressure level); 38dBA (Power level)
Special User Features:Auto On/Off
Starting Ramp Pressure:3 cm/H2O
Travel Sized:CPAP Only: 4.2" x 6.5" x 6.9" (2.7lbs); With Humidifier: 6.5" x 8.4" x 6.4" (4.45lbs)
US Shipping Cost:Free Standard Ground
Warranty:5 Year Warranty
