Eclipse 3 Portable Oxygen Concentrator with autoSAT by SeQual

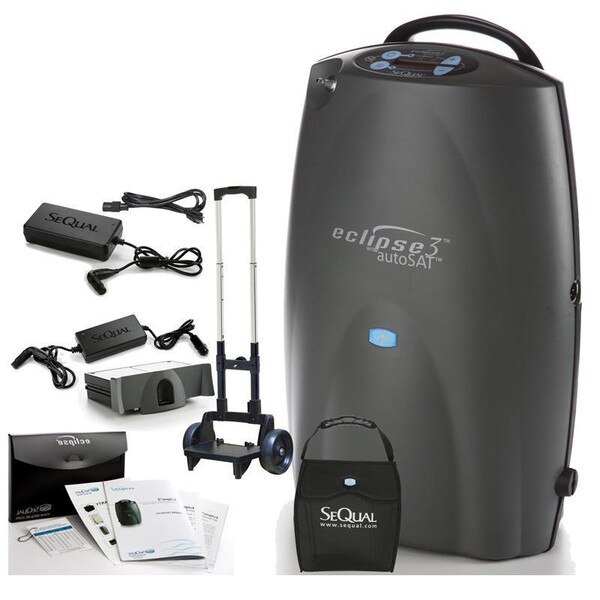

Sequal Eclipse 3 Portable Oxygen Concentrator with autoSAT

The Eclipse 3, Personal Ambulatory Oxygen System (PAOS) provides the most reliable continuous flow and pulse dose options in a 24/7 portable oxygen concentrator device. It is one device for both stationary and ambulatory oxygen needs. It also has been approved by FAA for use on most of the major airlines and can also be used on cruise ships, trains, buses, and any other modes of transportation (please check with your carrier).

• autoSAT Technology
• Approved for Rx of 0.5 3.0 LPM continuous flow
• Pulse Dose volumes up to 96mL (in increments of 16mL) in addition, three new pulse dose volumes of 128mL, 160mL and 192mL

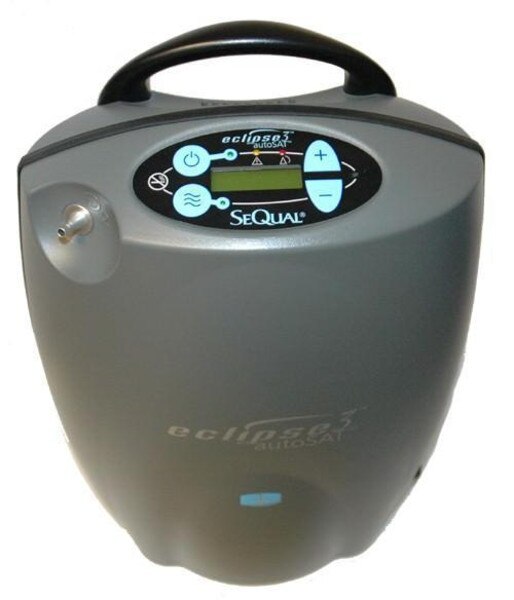

• mL and LPM dose LCD Display
• Three available rise time optionsFast, Medium and Slow
• Adjustable Pulse Dose sensitivity settings

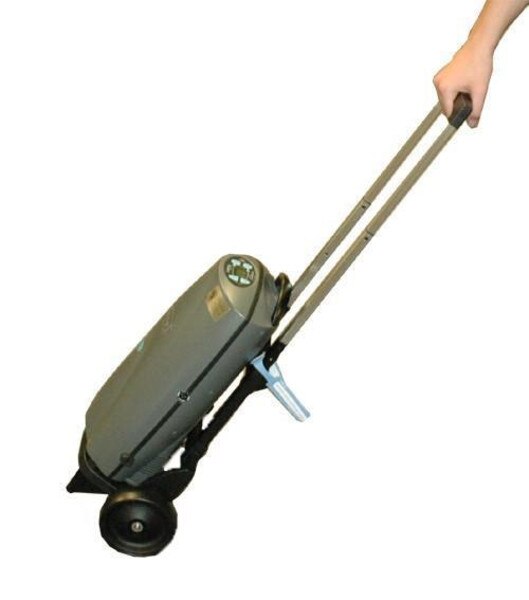

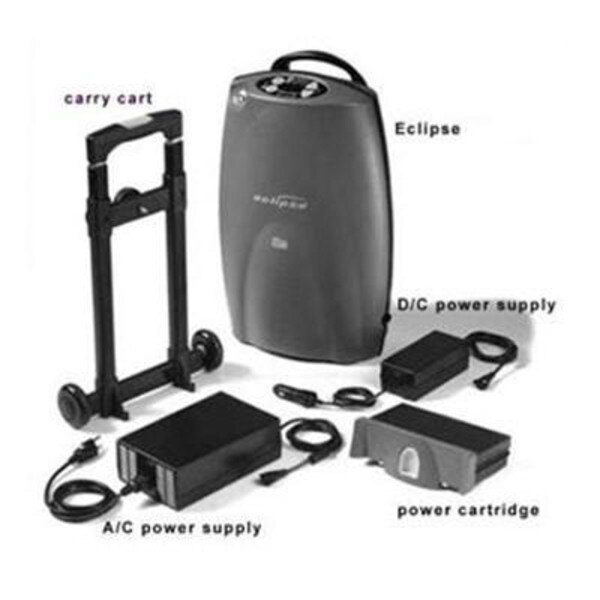

• New innovative Universal Cart design allows for easy access to battery
• New AC and DC adapters that are smaller in size yet more durable

Eclipse 3 Oxygen System Specifications

Size: H x W x D 19.3 x 12.3 x 7.1 inches 49.0 x 31.2 x 18.0 cm

Weight: Eclipse 15 pounds Power Cartridge 3.4 pounds

Continuous Flow settings: 0.5 to 3.0 LPM (0.5 liter increments) (measured in Liters Per Minute LPM)

Pulse Dose settings: 16-96 (16mL increments), 128mL, 160mL, 192mL (measured in mL)

Oxygen concentration 90% ± 3% @ sea level

Oxygen output pressure 5.0 psig (34.5 kPa) nominal

Sound level; 48 dB(A) at 3.0 LPM Continuous Flow Mode 40 dB(A) at 3.0 Pulse Dose setting

Power specifications:

• AC Operation 100-240 VAC, 50-60 Hz
• DC Operation 12 V nominal

Power Cartridge Quantity: (2) 97.5 W-Hr battery packs each containing 7.92 grams of equivalent lithium content

Power Consumption: 52 watts at 1.0 LPM continuous flow

• 145 watts at 3.0 LPM continuous flow
• 45 watts at 1.0 pulse dose setting
• 95 watts at 6.0 pulse dose setting

Features

Nominal Power Cartridge

• 2.0 hours at 2.0 LPM continuous flow operating time,/
• 1.3 hours at 3.0 LPM continuous flow
• 5.2 hours at 2.0 pulse dose setting,12bpm
• 3.5 hours at 6.0 pulse dose setting,12bpm

Power Cartridge: 1.8 to 5.0 hrs, dependent upon the flow recharge time setting, recharge time to achieve 80% capacity from a fully discharged Power Cartridge

Back up alarm power: 9 Volt battery

• Oxygen concentration Green Light = Normal Operation indicator
• Yellow Light = Warning or Caution
• Red Light Flashing = Abnormal Operation

Operating temperature: 50° F to 104° F (10° C to 40° C) at 82.4° F (28° C) dew point, non-condensing

Trigger sensitivity Adjustable between -0.125 cm H2O to -0.40 cm H2O

Altitude 0-13,123 feet (0-4000 meters)

Warranty:3 Year Manufacturers Warranty on Unit, Complementary 90 Day Protection Plan 1 Year Warranty on Accessories
